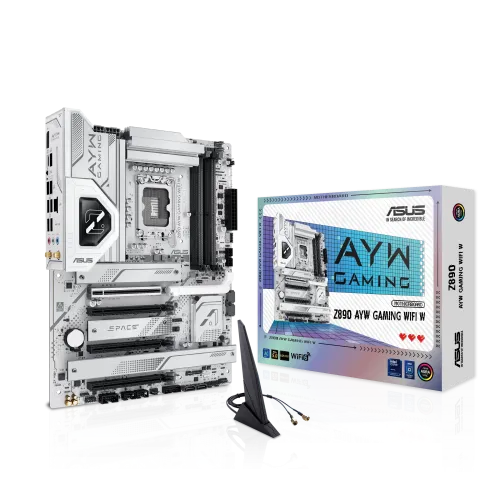

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard

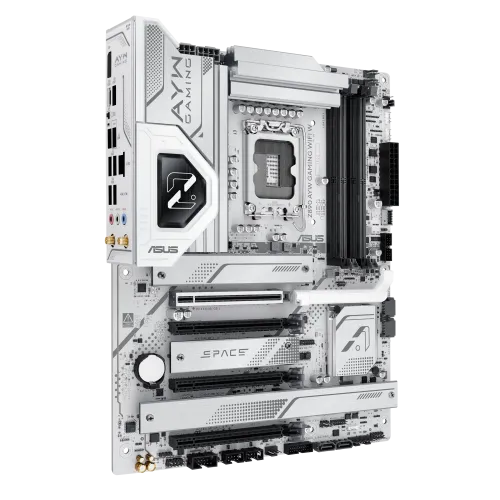

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard - Image 2

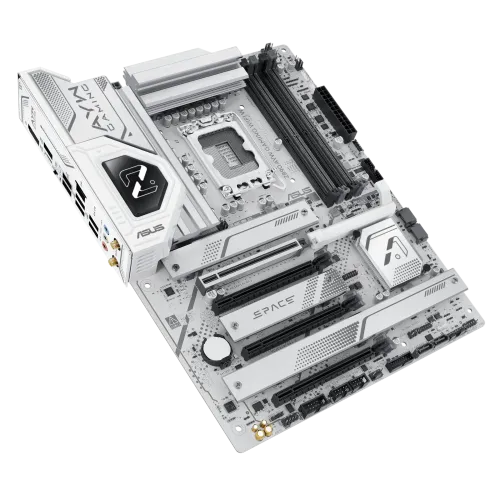

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard - Image 3

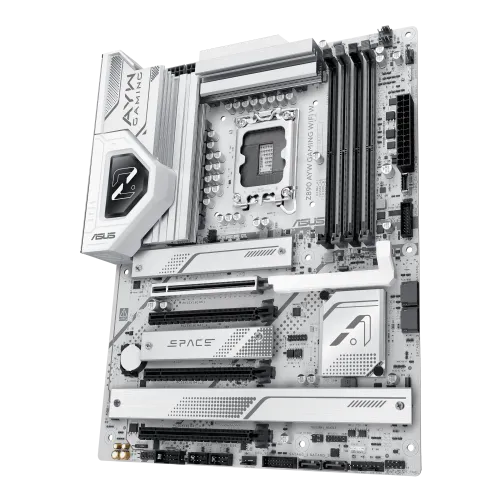

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard - Image 4

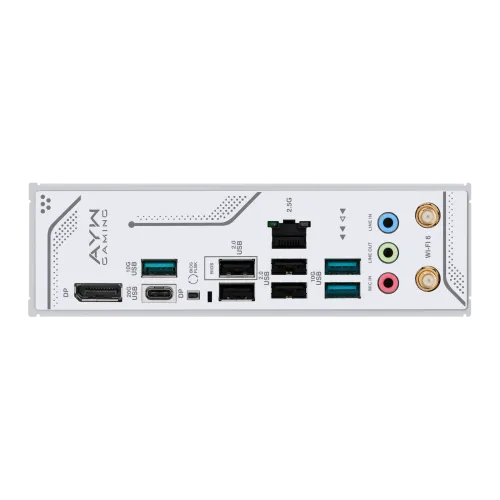

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard - Image 5

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard

Original price was: ৳ 46,110.Current price is: ৳ 42,000.

Key Features

Model: Z890 AYW GAMING WIFI W
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 192GB,Supports Up to 9066+MT/s (OC)
Graphics Output: 1x DisplayPort, 1xUSB Type-C 20Gbps (DisplayPort)
Features: 4x M.2, Intel Wi-Fi 6, Bluetooth 5.3

Chat Through WhatsApp

Category: Asus (Intel)

Description
Reviews (0)

Specification

Basic Information
Supported CPU	Intel Core Ultra Processors(Series 2)
Chipset	Intel Z890 Chipset
BIOS	256(128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI	Intel® Core™ Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 2 x PCIe 4.0 x16 slots (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
M.2 Socket	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2) * M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Memory
Type	DDR5
Slots	4 x DIMM slots
Supported Memory	Supports up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM
Maximum Memory	192GB
Graphics
Graphics	1 x DisplayPort 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output * Graphics specifications may vary between CPU types
Connector & Ports
Display Port (s)	1 x DisplayPort 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
USB (s)	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge )** 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 * The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
Supported Storage	4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
RAID	Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio	1 x Front Panel Audio header (F_AUDIO)
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1 pin)
Others
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsinks – VRM heatsinks design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield Aura Sync – Addressable Gen2 headers Front Panel USB 20Gbps with PD Fast Charge Support – Support: up to 30W fast charging and USB Wattage Watcher – Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A – Compatible with PD3.0 and PPS
Bundled Software	ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost (Intel K-series Processors only)
Warranty Information
Manufacturing Warranty	3 Year Warranty
