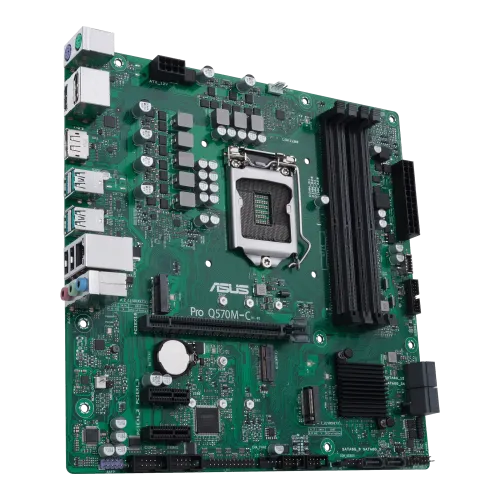

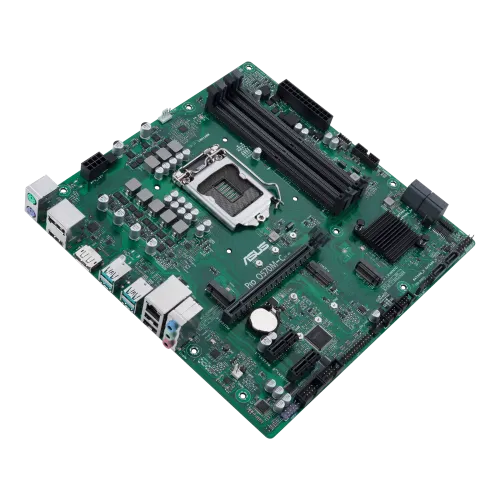

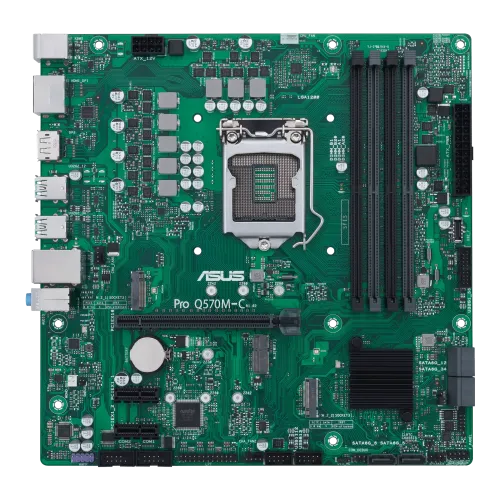

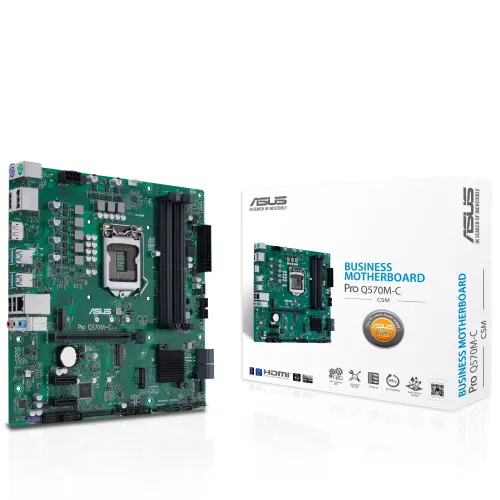

ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard
Original price was: ৳ 12,800.৳ 11,800Current price is: ৳ 11,800.
Key Features
- Model: Pro Q570M-C/CSM
- Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
- Supported RAM: 4x DDR4, Max 128GB 3200(O.C.)
- Graphics Output: 1x DisplayPort 1.4, 1x HDMI 2.0
- Features: 1x M.2, Intel I219-LM 1Gb Ethernet
Specification
| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel Q570 Chipset | |
| BIOS | 128+64 Mb Flash ROM | |
| Form Factor | mATX Form Factor | |
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel 11th processors support PCIe 4.0 x16 mode Intel 10th processors support PCIe 3.0 x16 mode Intel Q570 Chipset 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Q570 Chipset M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4x DIMM | |
| Supported Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. |
|
| Maximum Memory | Max. 128GB | |
| Graphics | ||
| Graphics | Graphics specifications may vary between CPU types. Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 2 x DisplayPort | |
| USB (s) | 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) |
|
| LAN Port (s) | 1 x Intel I219-LM 1Gb Ethernet | |
| Supported Storage | Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Q570 Chipset M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. |
|
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|

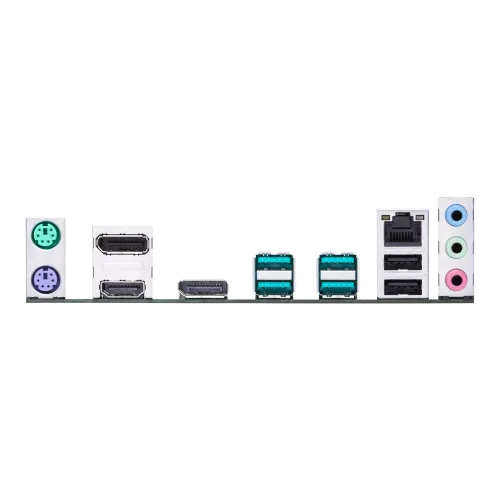

| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMITM 3 x Audio jacks 1 x Intel® I219-LM 1Gb Ethernet 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
|
| TPM (Trusted Platform Module ) | TPM 2.0 IC onboard | |
| Others | ||
| Special Features | ASUS EZ DIY – Box Headers Bespoke Motherboard Design & Business Focused Features – ASUS Self Recovering BIOS – ASUS Event Log – ASUS Commercial BIOS kit – Anti-Moisture – 24/7 Reliability – Overcurrent Protection |
|
| Bundled Software | ASUS Exclusive Software IT Management software supported – ASUS Control Center Express(ACCE) |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
