| Main Features | |
| Chipset | Intel® H61DA1 |
| Generel information | |
| Audio Chipset | Realtek Chip, ALC 662 6-channel audio |
| Back Panel I/O Ports | 1 x VGA Port 1 x HDMI Port 1 x LAN (RJ45) Port 6 x USB 2.0 Ports 3 x flexible audio jacks |
| Dimension | 190 x 170mm |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HD / VGA ports |
| Internal I/O Port | 1 x USB 19pin connector, supports 2*USB 2.0 ports 1 x USB 2.0 connector, supports 2*USB 2.0 ports 4 x SATA 3Gb/s Ports 1 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector 1 x DEBUG connector |
| LAN | Realtek Chip, 1 x 100M(Optional 1000M) |
| Memory Support | 2 * DDR3 1066/1333/1600MHz DIMM |
| Processor | Support Intel® Socket 1155 for 2nd/3rd Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 |
| Slots | 1 x PCIe x16 slot 1 x PCIe x1 slot |
| Storage | 4 x SATA 3Gb/s Ports |
| USB Ports | USB 2.0 |
| Warranty Information | |
| Warrantty | 1 Year |

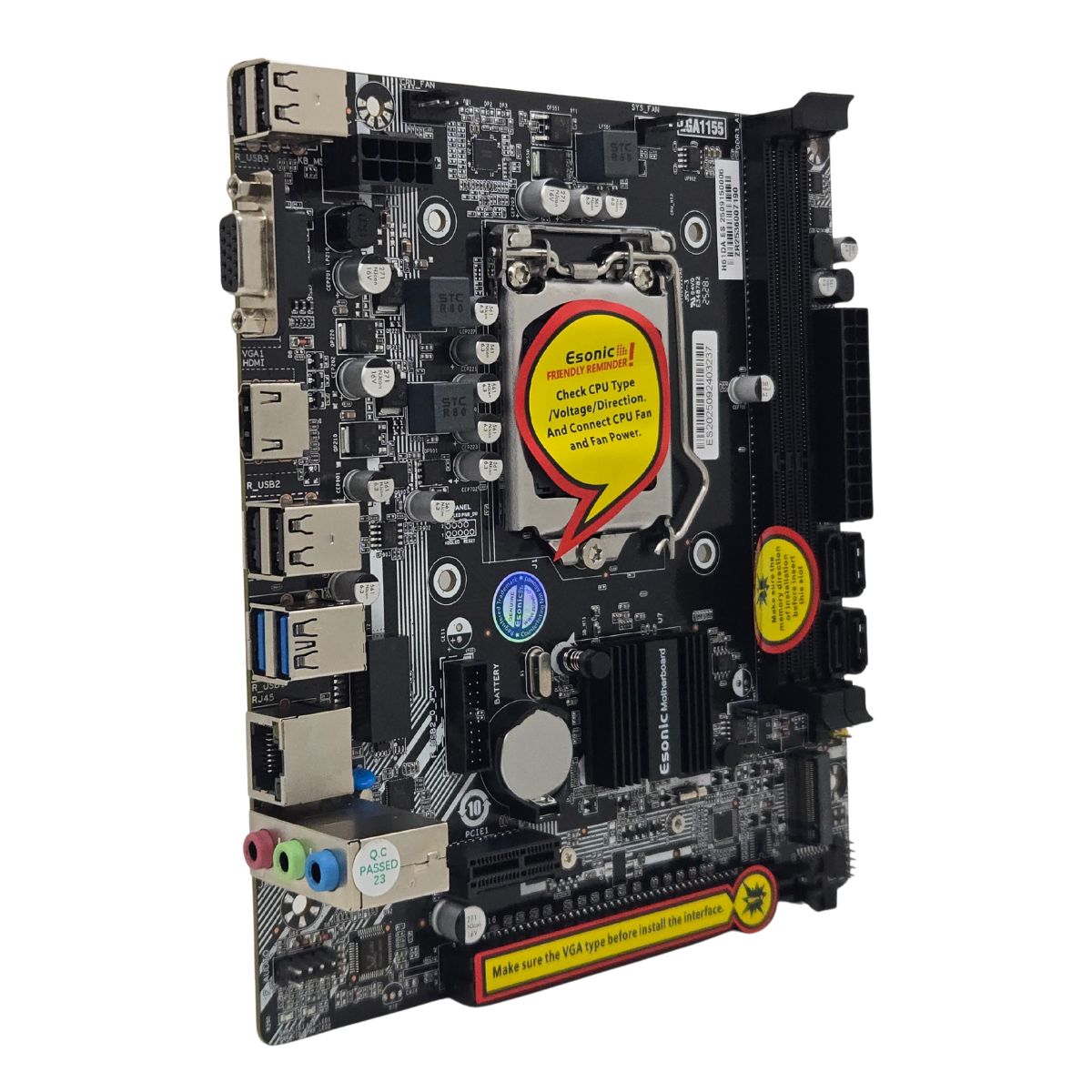

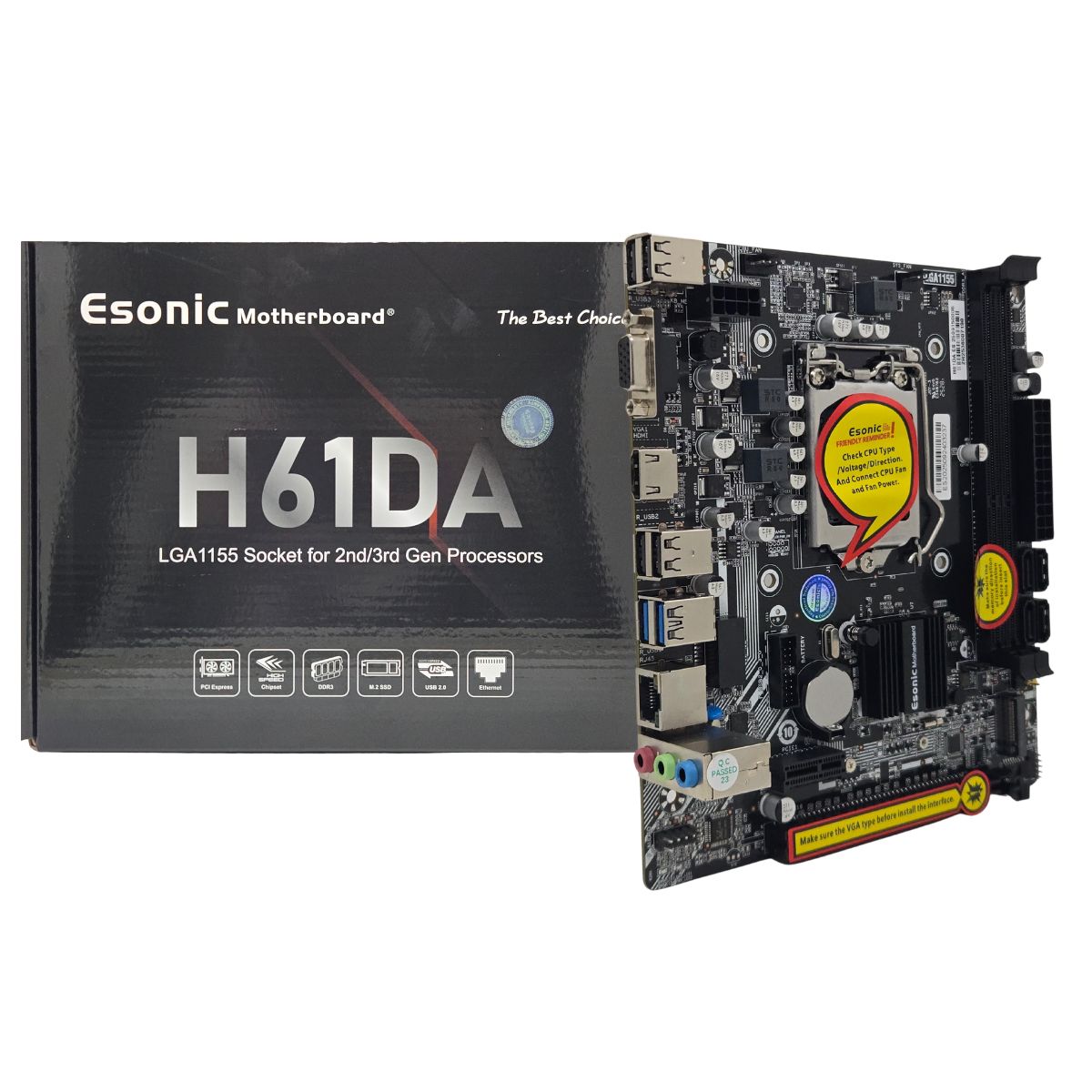

Esonic H61DA1 DDR-3 2nd/3rd Gen NVME Support M-ATX Motherboard
৳ 2,900 Original price was: ৳ 2,900.৳ 2,700Current price is: ৳ 2,700.
Key Features
- Chipset: Intel H61
- Memory Type: DDR3 (2 DIMM slots)
- Storage: 4 x SATA 3Gb/s Ports
- USB Ports: USB 2.0
Category: Esonic Motherboard
