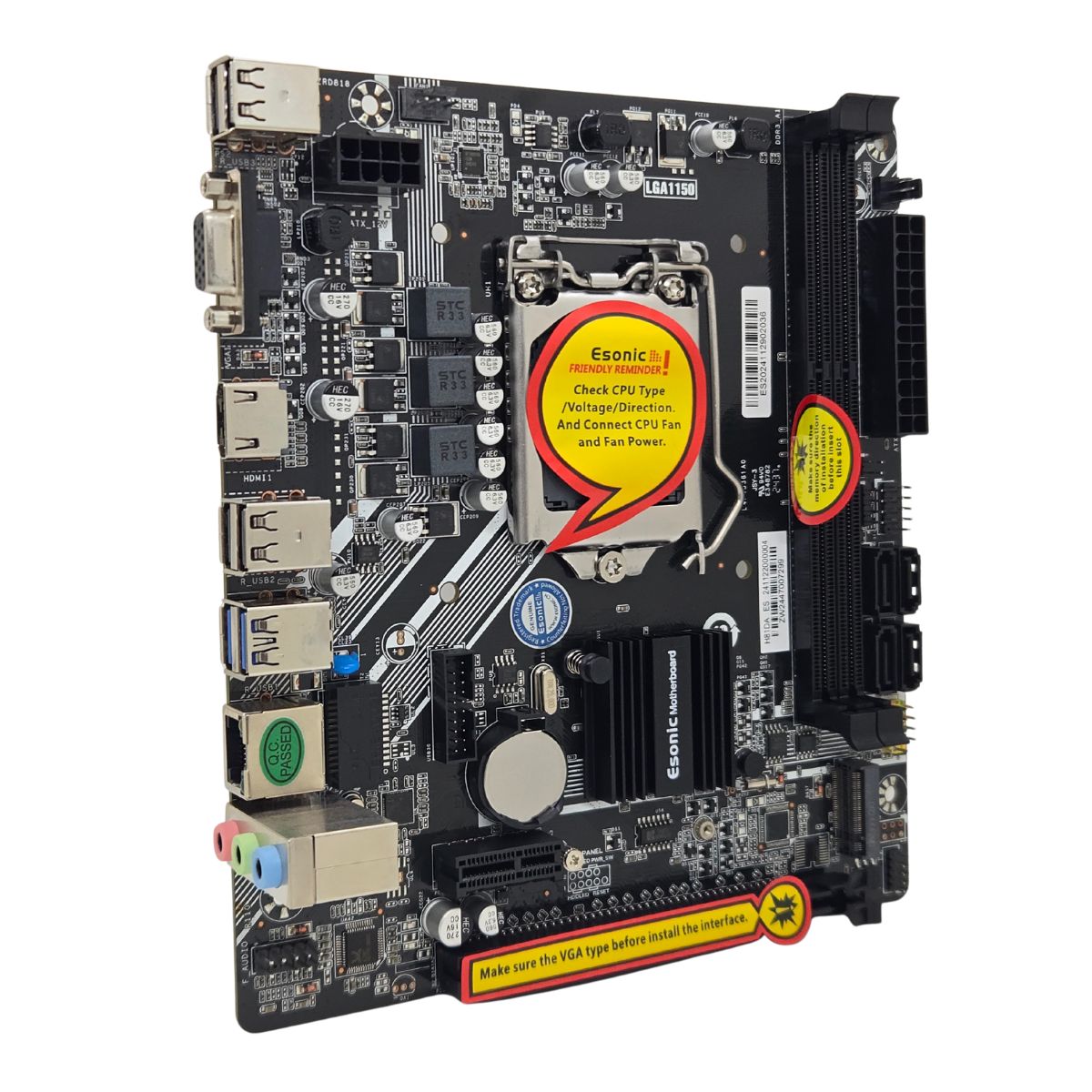

Esonic H81DA1 DDR-3 Intel 4th Gen NVME Support M-ATX Motherboard
Original price was: ৳ 3,400.৳ 3,200Current price is: ৳ 3,200.
Key Features
- Model: Esonic H81DA1
- Intel Socket LGA1150 for 4th Gen Core i7/ i5/i3 Processors
- Memory Support DDR-3 1333/1600MHz
- Storage- 4X SATA3.0 6Gb/s
- M.2, PCIE-X16, PCIE-X1, SATA 3.0, USB 3.0
| Brand | Esonic |
|---|---|
| Model | H81DA1 |
| Processor | Support Intel® Socket 1150 for 4th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H81 |
| Memory support | 2 * DDR3 1066/1333MHz DIMM |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI / VGA ports |
| Slots | 1 x PCIe x16 3.0/2.0 slot 1 x PCIe x1 2.0 slot |
| Storage | 1 x M.2 Nvne Socket, Supports 2242 SSD 4 x SATA 6Gb/s Ports |
| LAN | Realtek Chip, 1 x 100M（Optional 1000M） |
| Audio | Realtek Chip, ALC 6-channel audio |
| USB | 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 * USB 2.0 port (4 at back panel, black, 2 at mid-board) |
| Back Panel I/O | 1 x VGA Port 1 x HD Port 1 x LAN (RJ45) Port 2 x USB 3.0 Ports(Blue) 4 x USB 2.0 Ports 3 x flexible audio jacks |
| Internal I/O | 1 x USB 3.0 connector（19pin)， supports 2*USB 3.0 ports 1 x USB 2.0 connector， supports 2*USB 2.0 ports 4 x SATA 6Gb/s Ports 1 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x DEBUG connector 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector |
| Dimension | 215 x 170mm |
| Color | Black |
| Warranty | 01-year warranty |
