GIGABYTE Z790M AORUS ELITE AX LGA1700 DDR5 Micro ATX Motherboard
Original price was: ৳ 39,000.৳ 37,000Current price is: ৳ 37,000.
Key Features
-
CPU: LGA1700 socket (14th, 13th, and 12th)
-
Chipset: Intel Z790 Express Chipset
-
Memory: Support for DDR5 7600(O.C.)
-
Storage: 1 x M.2 connector
| Category | Specification |
|---|---|
| CPU Socket | LGA1700: Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, Celeron |
| L3 Cache | Varies with CPU |
| Chipset | Intel Z790 Express |
| BIOS | 1×256 Mbit AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0) |
| Memory Slots | 4× DDR5 DIMM, Dual Channel |
| Max Memory | 128GB (32GB per DIMM) |
| Memory Support | DDR5 4000–7600(O.C.) MT/s; ECC & non-ECC UDIMM; XMP supported |
| Storage (CPU) | 1× M.2 PCIe 4.0 x4/x2 (2280) |
| Storage (Chipset) | 2× M.2 PCIe 4.0 x4/x2 (2280/22110), 6× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 for NVMe & SATA devices |
| Integrated Graphics | Intel HD Graphics |
| Video Output | 1× HDMI 2.0 (4K@60Hz), 1× DisplayPort 1.2 (4K@60Hz) |
| LAN | Realtek 2.5GbE LAN (2.5G/1G/100Mbps) |
| Wi-Fi / Bluetooth | Intel Wi-Fi 6E AX211, Bluetooth 5.3 |
| Audio | Realtek ALC1200 HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| Expansion Slots (CPU) | 1× PCIe 5.0 x16 |
| Expansion Slots (Chipset) | 1× PCIe 4.0 x4, AMD CrossFire support |
| Internal I/O | 24-pin ATX, 8+4-pin 12V, CPU/System fan headers, ARGB/RGB headers, 3× M.2 slots, 6× SATA, USB-C/USB headers, TPM, Thunderbolt add-in connectors, Q-Flash Plus, Reset/Clear CMOS |

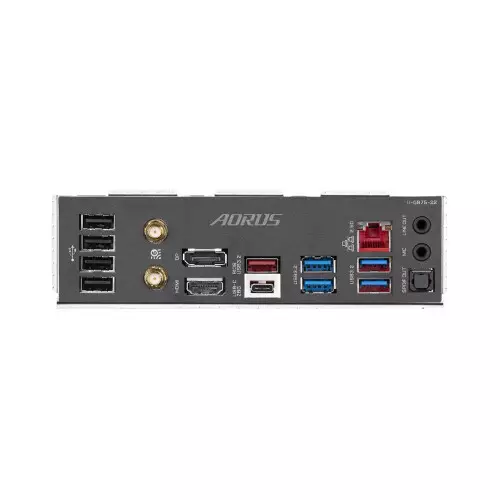

| Back Panel I/O | 1× USB-C Gen2x2, 1× USB-C Gen2 (internal), 1× USB 3.2 Gen2 Type-A (red), 6× USB 3.2 Gen1, 8× USB 2.0/1.1, 1× HDMI 2.0, 1× DisplayPort, 1× RJ-45, 1× Optical S/PDIF, 2× Audio Jacks, 2× SMA antenna |
| USB Support | 1× USB-C Gen2x2, 1× USB-C Gen2 (internal), 1× USB 3.2 Gen2 Type-A, 6× USB 3.2 Gen1, 8× USB 2.0/1.1 |
| Special Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Controller | iTE I/O Controller Chip |
| Form Factor / Dimension | Micro ATX; 24.4 × 24.4 cm (board), 30.5 × 24.4 cm (with I/O) |
| OS Support | Windows 11 & 10 64-bit |
| Warranty | 3 Years |
