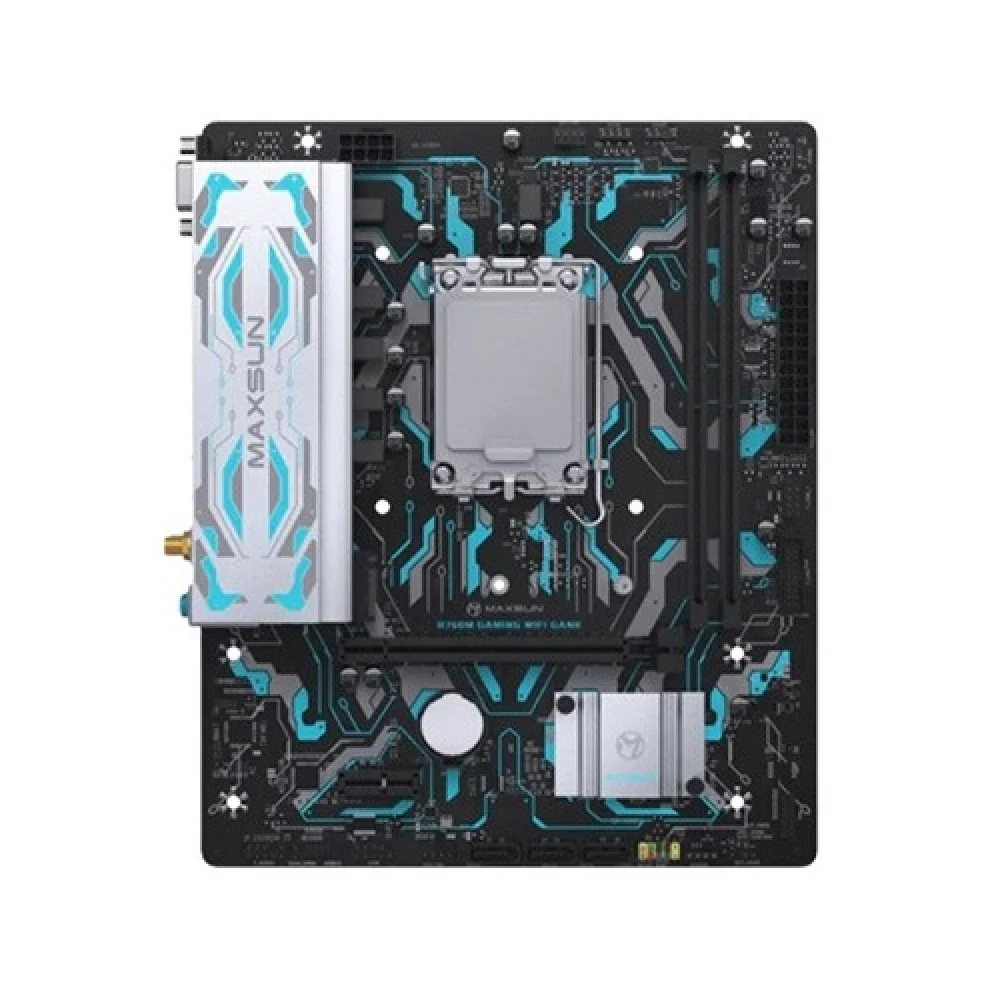

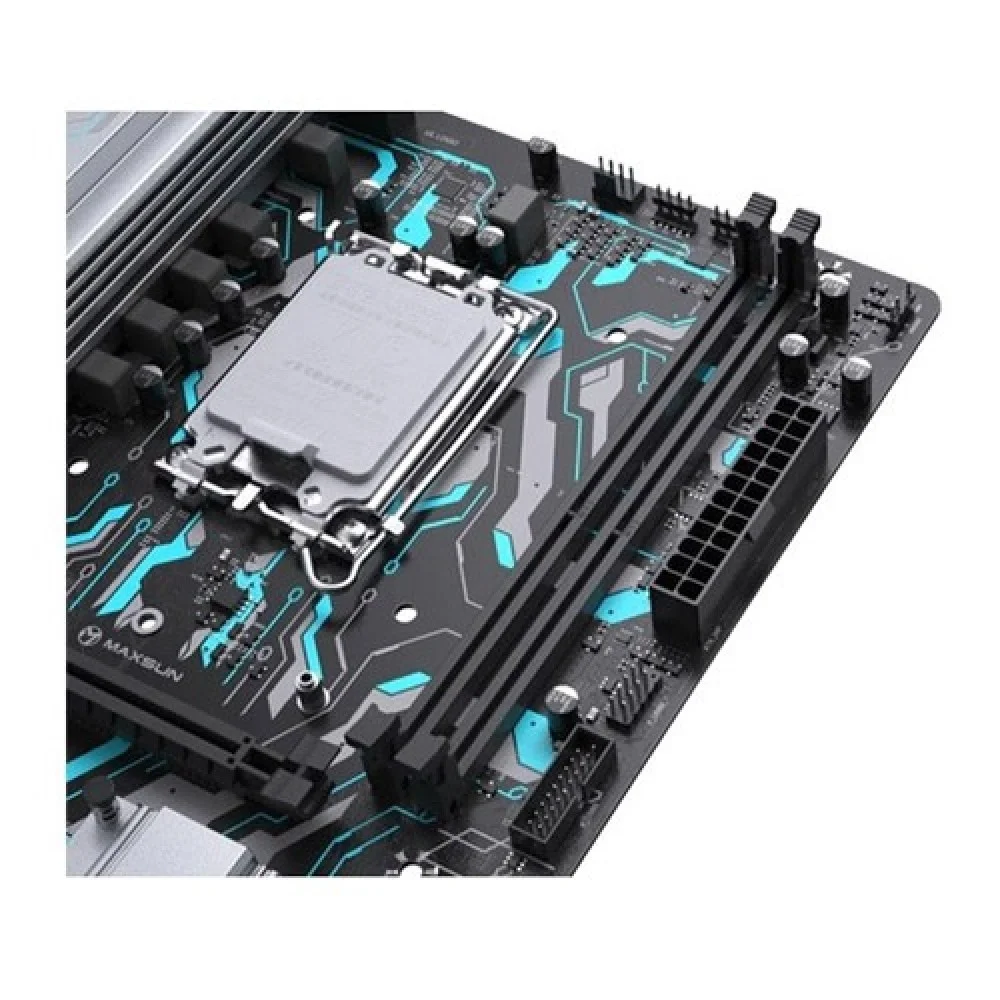

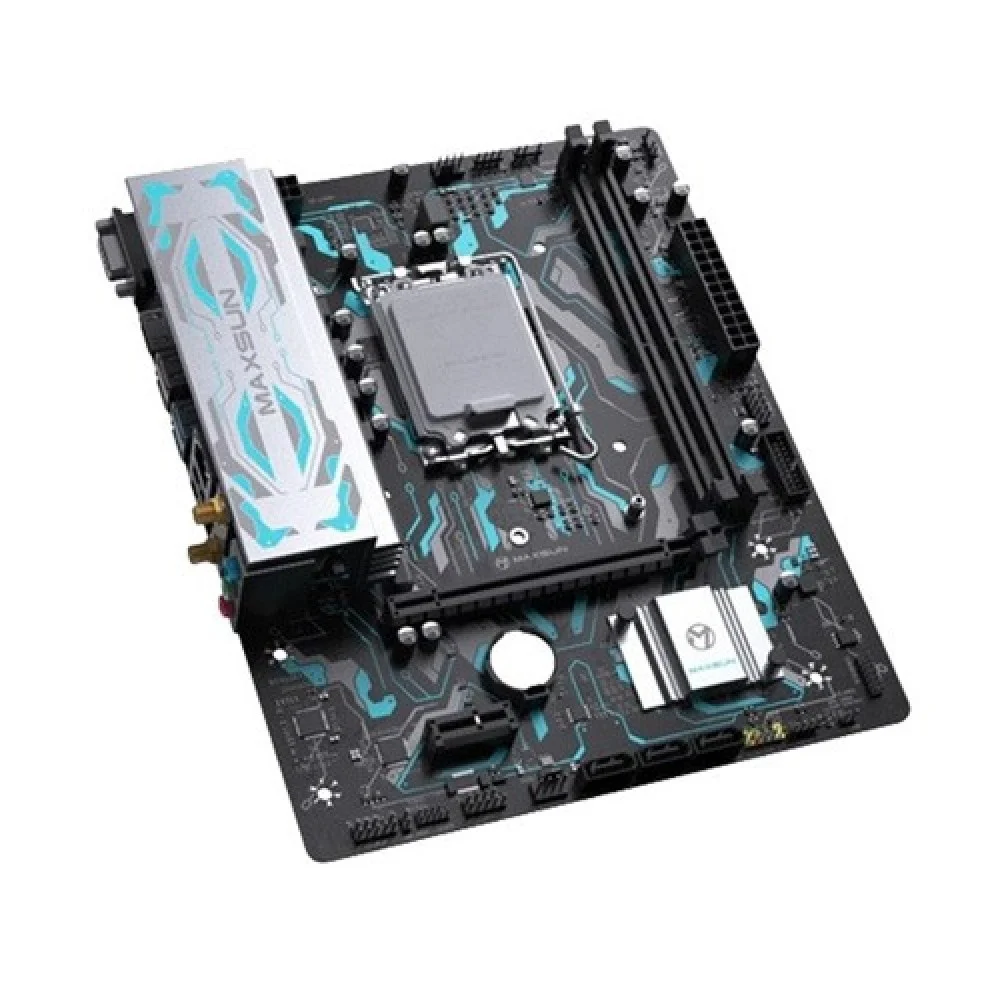

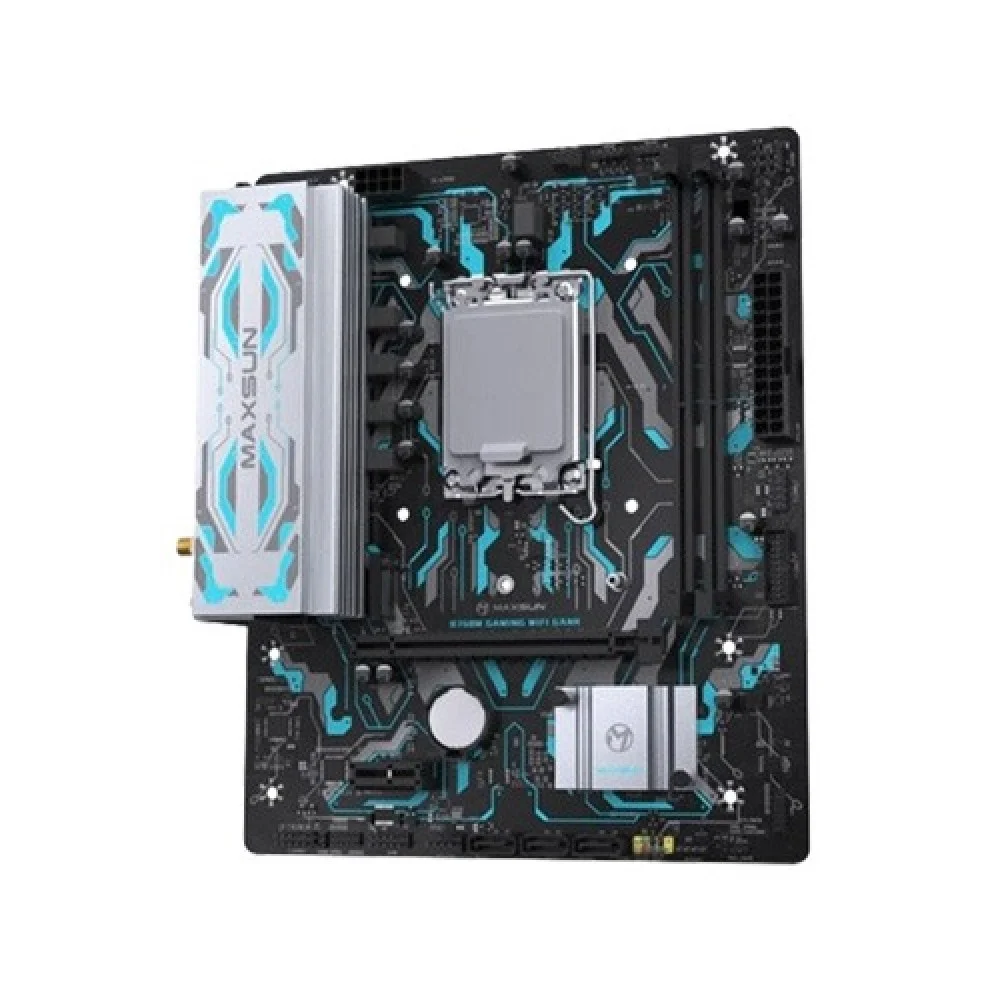

Maxsun B760M Gaming Gank Wifi DDR5 Micro ATX Motherboard
Original price was: ৳ 14,800.৳ 12,700Current price is: ৳ 12,700.
Key Features
- HDMI 1.4: 4096×2160 @30Hz (HDCP2.2)
- VGA: 1920×1080 @60Hz
- FORM FACTOR – Micro ATX 225mm x 195mm
- MEMORY – 128GB
| General Information | |
| Chipset Manufacturer | INTEL B760 High-speed chipset |
| Display | HDMI 1.4: 4096×2160 @30Hz (HDCP2.2) VGA: 1920×1080 @60Hz |
| Audio | Integrated REALTEK ALC 897 sound chip |
| Graphics | 1x VGA *Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz 1x HDMI port *HDMI port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| LED Type | 4x Distributed Debug LED |
| Memory Support | 2x DIMM DDR5 memory slots Maximum support in total is 128GB Support for dual-channel memory technology Support for 4800/5200/5600/OC + memory frequency Supports Intel XMP Technology |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Slots | 1x PCIE X16 4.0 slot 3.0 sl Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility) |
| Storage | 1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports |
| Main Features | |
| Form Factor | Micro ATX 225mm x 195mm |
| Supported CPU | Support for LGA1700 slots The 12th ,13th and14t generation processors TDP: 75W |
| Connector & ports | |
| Internal I/O Ports | 1x 24-PIN motherboard ATX power supply 1x 8-PIN motherboard ATX 12V power supply port, 12V input, 1x sets of system fan pins and 1x group of CPU fan pins 1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL) One 12V NRGB pin and two 5V ARGB pins |
| USB (s) | On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin, 1xgroup (2 rows) USB 3.2 GEN 1 pin, 1x TYPE C(USB 3.2 GEN 2X2) ports |
| Warranty Information | |
| Warranty | 3 Years |
