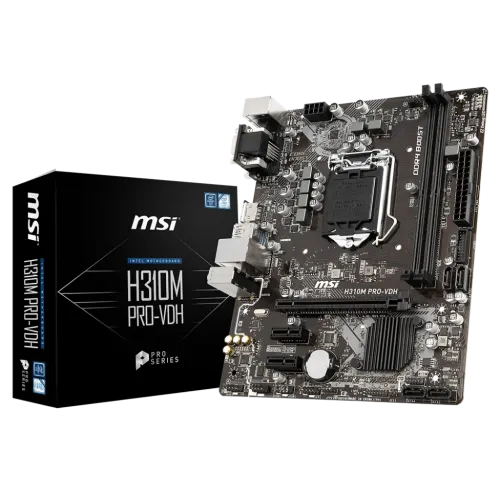

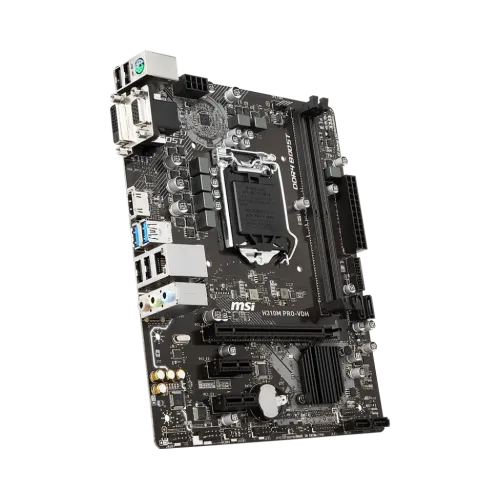

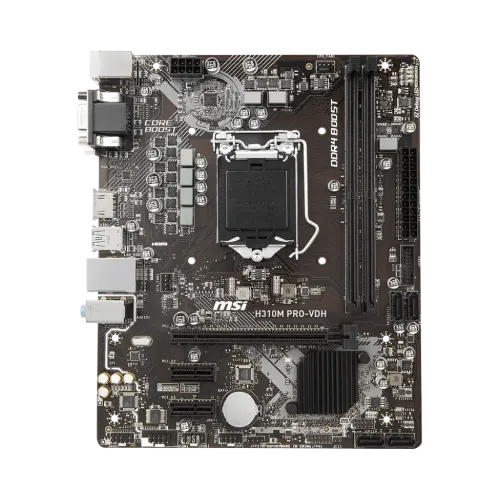

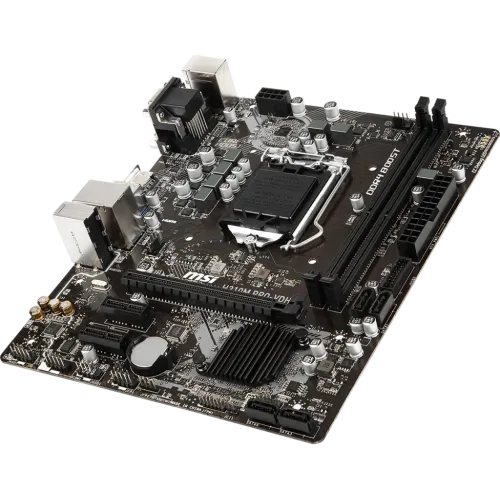

MSI H310M PRO-VDH Intel 9th Gen Motherboard

Original price was: ৳ 9,000.Current price is: ৳ 8,800.

Model: MSI H310M PRO-VDH
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151
X-Boost & Core Boost
EZ Debug LED: For troubleshooting
Audio Boost: studio grade sound

Category: MSI (Intel)

Specification

Basic Information
Supported CPU	Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset	Intel H310 Chipset
Form Factor	m-ATX Form Factor
Expansion Slots
PCI	1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
Memory
Type	Supports Dual-Channel mode
Slots	2 x DDR4 memory slots
Supported Memory	Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC) Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	32GB
Graphics
Graphics	1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30H

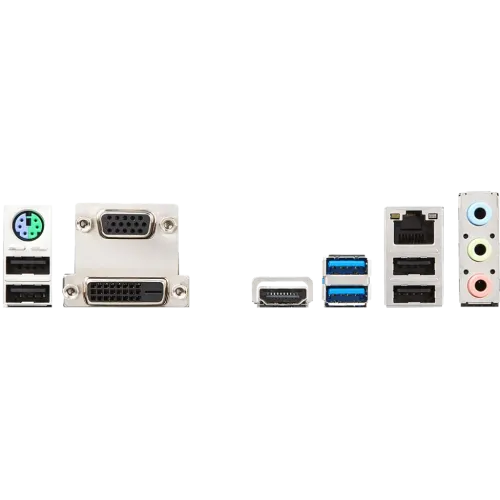

Connector & Ports
HDMI	1 x HDMI port, supports a maximum resolution of 4096×2160@30H
DVI-D (s)	1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
USB (s)	4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
LAN Port (s)	1 x RTL8111H Gigabit LAN controller
Supported Storage	Intel H310 Chipset 4 x SATA 6Gb/s ports Supports Intel® Rapid Storage Technology
Audio	Realtek ALC 887/897 Codec
Warranty Information
Manufacturing Warranty	03 years
