MSI PRO B840M-B AMD AM5 mATX Motherboard

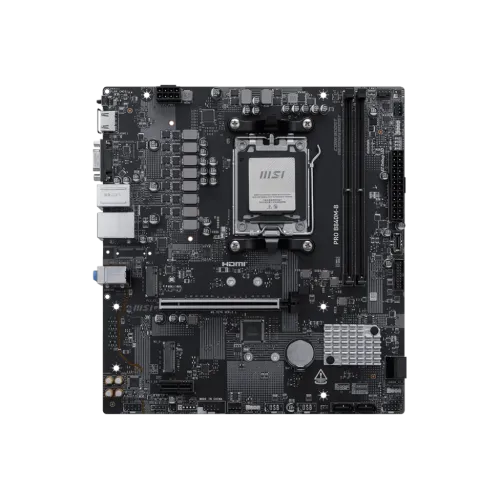

MSI PRO B840M-B AMD AM5 mATX Motherboard - Image 2

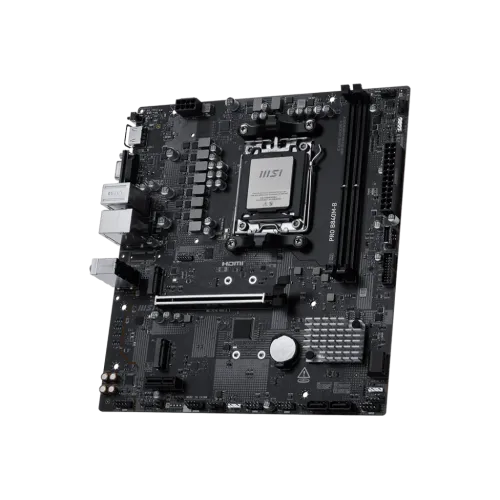

MSI PRO B840M-B AMD AM5 mATX Motherboard - Image 3

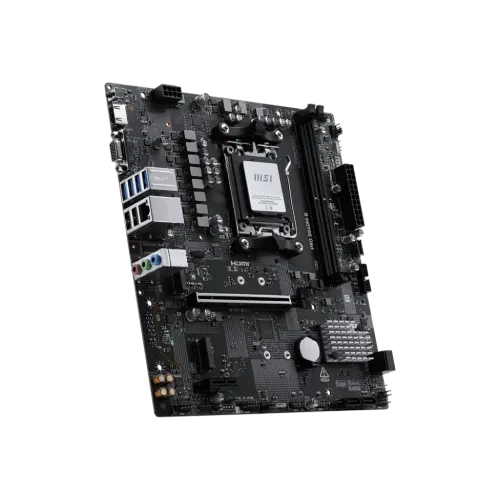

MSI PRO B840M-B AMD AM5 mATX Motherboard - Image 4

MSI PRO B840M-B AMD AM5 mATX Motherboard - Image 5

MSI PRO B840M-B AMD AM5 mATX Motherboard

Original price was: ৳ 15,500.Current price is: ৳ 14,800.

Key Features

Model: PRO B840M-B
Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM: 2x DDR5 UDIMM, Up to 8000 (OC) MHz, Max. 128GB
Graphics Output: 1x HDMI 2.1, 1x VGA, Maximum resolution of 4K 60Hz
Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN

Chat Through WhatsApp

Category: MSI (AMD)

Description
Reviews (0)

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B840
BIOS	Flash BIOS Button
Form Factor	mATX 226mmx243.84mm
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Memory
Type	DDR5
Slots	2x UDIMM
Supported Memory	Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory	128GB
Graphics
Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
Connector & Ports
HDMI	1x HDMI
VGA (s)	1x VGA
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN Port (s)	Realtek 8125D 2.5G LAN
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty	3 Years
