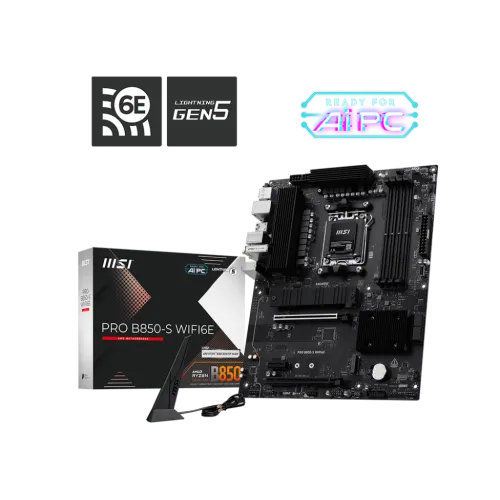

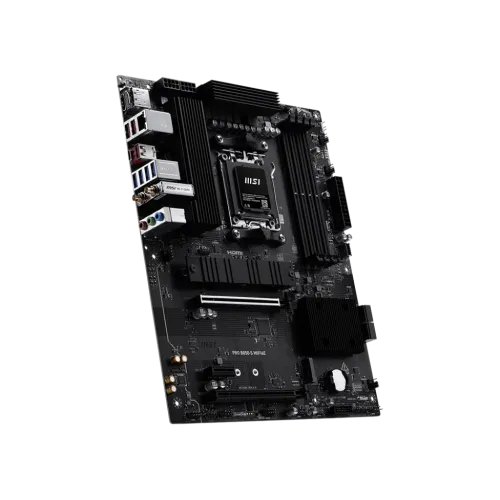

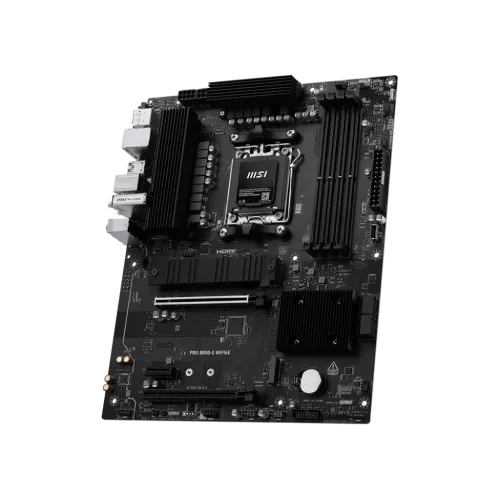

MSI PRO B850-S WIFI6E AM5 ATX Motherboard
Original price was: ৳ 28,000.৳ 27,500Current price is: ৳ 27,500.
Key Features
- Model: PRO B850-S WIFI6E
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 8125 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
Specification
| Basic Information | ||
| Supported CPU | Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5 | |
| Chipset | AMD B850 | |
| BIOS | Flash BIOS Button | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|

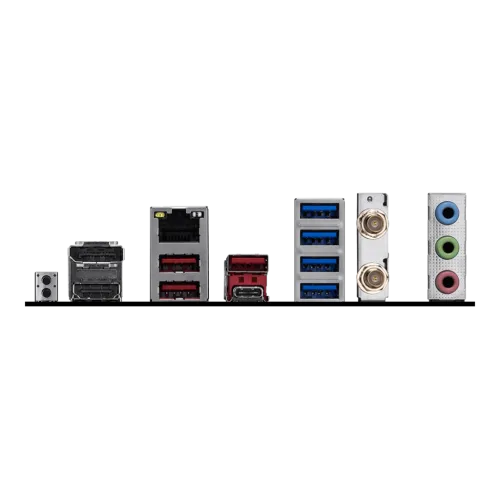

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8125 2.5G LAN | |
| Wireless Communication module | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
