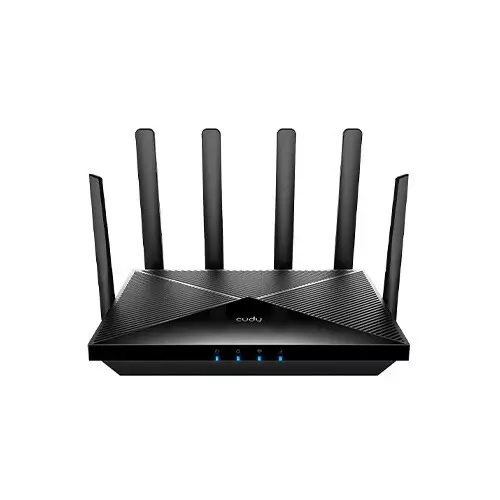

CUDY LT18 – Dual Band AX1800 WiFi6 4G LTE Cat 18 Router

Specification:

CPU	CPU Details: 880 MHz Dual-Core, MIPS1004Kc
Memory/Storage	Flash/ROM: 16 MB (128 Mbit) NORDDR/RAM: 256 MB (2 Gbit) DDR3
Cellular	Cellular Standards: 4G LTE Cat. 18 Cellular Antennas: 4× Detachable Detachable Cellular Antennas Connector: SMA Female SIM Options: 2× Nano SIM Slots Available Versions: EU, US
Wireless	5 GHz Wi-Fi Speed: 1201 Mbps 2.4 GHz Wi-Fi Speed: 574 Mbps 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 2× Fixed 5 GHz Antenna Gain Max: 5.18 dBi 2.4 GHz Antenna Gain Max: 3.16 dBi Beamforming: TrueFEM or PA/LNA: – 5 GHz: 2× Internal – 2.4 GHz: 2× InternalRange Performance: Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. Wall Performance: Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”)
Interfaces	Physical Buttons: WPS Button Reset ButtonGigabit RJ45 Ports: 4 Ethernet Notes: 1× RJ45 port is WAN/LAN configurable, and the rest are LAN portsLED: – Power – Internet – Wi-Fi – Cellular Power Input: DC Jack
Power	Power Methods: DC DC: 12V 1.5APower Adapter: – Input: 100 ~ 240 V, 50/60 Hz AC – Output: 12V 1.5A DC
Reliability	EMS: ESD: Contact: 4kV; Air: 8kV Environment: – Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) – Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) – Operating Humidity: 10% ~ 90% non-condensing – Storage Humidity: 5% ~ 90% non-condensing
Mechanical	Dimension: 253×152.5×48.2 mm 9.96×6×1.9 inchesProduct Weight: 656 g (23.14 oz.)Installation: – Desktop – Wall-mount
Wireless	Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAMWi-Fi Efficiency: – OFDMA – MU-MIMO – BSS ColorMax Capacity: 256 Recommended Client Upper Limit: 80 Max Wi-Fi Channel Width: 80 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True
General	Operation Modes: – Cellular Router – Wi-Fi Router – WISPMesh: Cudy Mesh MainMesh Backhaul: – Wireless Backhaul – Wired Backhaul Cellular APN: – Band Select (Band Lock) – Cellular Mode Select – Data Roaming – APN Profile – Manual APN Profile – MBN – MTU Value Cellular Mode: – 4G Only – Auto WAN Mode: – DHCP – Static IP – PPPOE Internet Failover Sequence: – WAN – WISP -Cellular
Network	QoS: Per-User Rate Limiting DHCP: – Address Reservation – DHCP Client List – Server IP Versions: IPv4/IPv6 IPv6 Protocols: – Relay – Dynamic (SLAAC/DHCPv6) – Static (Fixed IP) – Passthrough – 464XLAT – MAP-E – DS-Lite IPTV/VLAN: – Bridge – Tag VLAN TTL Customization: – Extend – Spoof – Custom IGMP: – IGMP Proxy – IGMP Snooping Forwarding: – Port Forwarding – Port Triggering – UPnP – DMZ Firewall: – SPI Firewall – DoS Protection – Block PING Application Layer Gateway: – IPSec Passthrough – L2TP Passthrough – PPTP Passthrough – FTP Passthrough – TFTP Passthrough – H323 Passthrough – SIP Passthrough – RTSP Passthrough
Utilities	VPN Server: – WireGuard – OpenVPN – IPsec – Zerotier – PPTP – L2TPVPN Client: – WireGuard – OpenVPN – IPsec – Zerotier – PPTP – L2TPDNS Options: – DNS over TLS – Manual DNS – Rebind Protection – Override Clients’ DNS DNS over TLS Providers: – Cloudflare – Google – Quad9 – Custom Wake on LAN: True Online Detection: True
Management	Parental Controls: – Profile Settings – Offline Time – Online Time – Pause the Internet – Web FilterAll Devices Management: – Wi-Fi Time Schedule – MAC Filter – IP/MAC BindingPer-Device Management: – Internet On/Off – VPN On/Off – Online Time Schedule – Device Rename Content Management: – Domain Filter – IP Filter
System	Local Control Method: – Config Web Page – App ControlRemote Control Method: – Config Page via HTTPS – App Control – TR069/TR098/TR111/TR143/TR181Firmware Upgrade: – Local Update – App (Over the Air) – Online Update Diagnostic Tools: – Diagnosis – Ping – Traceroute – NSLookup – System Log Languages: – English – Bengali – Catalan – Czech – German – Greek – Spanish – French – Hebrew – Croatian – Hungarian – Italian – Japanese – Khmer – Korean – Dutch – Norwegian – Polish – Portuguese – Romanian – Russian – Slovak – Swedish – Thai – Turkish – Ukrainian – Vietnamese – Simplified Chinese – Traditional Chinese Reliability: – Timed Reboot – Backup and Restore
Dashboard	Panel: – Internet Status – Mesh Status – Device Management – Cellular Status – SMS Send and Receive – WAN Status – LAN Status – WISP Status – Wi-Fi Status – VPN Status – DHCP Server Status – System VersionCharts: – Mesh Topology – Cellular Speed – Internet Speed – WISP Speed – Wi-Fi Speed
Included in the Box	LT18 Detachable Antennas Power Adapter Ethernet Cable Installation Guide
Certification	FCC, CE
Warranty Details	1-Year Brand Warranty

CUDY LT18 – Dual Band AX1800 WiFi 6 4G LTE Cat 18 Router

The CUDY LT18 AX1800 WiFi 6 4G LTE Cat 18 Router is a high-performance SIM-based 4G LTE CUDY LT18 – Dual Band router with built-in WiFi 6 technology, designed for users who need fast mobile internet, strong coverage, and stable multi-device connectivity. It is an ideal solution for home, office, remote areas, CCTV systems, and backup internet connections in Bangladesh.

This router combines advanced 4G LTE Cat 18 modem technology with modern WiFi 6 (802.11ax), delivering significantly faster speeds and better efficiency than traditional 4G routers. On mobile network, it supports speeds up to Gigabit-level LTE performance (up to 1.2Gbps theoretical download speed) depending on carrier support.

CUDY LT18 – Dual Band For wireless connectivity, it offers dual-band AX1800 WiFi performance, CUDY LT18 – Dual Band with up to 1201Mbps on 5GHz and 574Mbps on 2.4GHz, ensuring smooth internet usage for streaming, gaming, video calls, and large downloads.

One of the biggest advantages of the LT18 is its Cat 18 LTE Advanced Pro modem, which supports carrier aggregation and 4×4 MIMO technology. This helps improve signal reception and increases mobile data speed stability, especially in areas where network strength fluctuates.

The CUDY LT18 – Dual Band router includes 4 Gigabit Ethernet LAN ports, CUDY LT18 – Dual Band allowing high-speed wired connections for PCs, smart TVs, IP cameras, and gaming consoles. This ensures maximum stability for critical devices that need consistent performance.

CUDY LT18 – Dual Band For better coverage, the CUDY LT18 is equipped with high-performance external antennas, which improve signal strength and reduce dead zones inside homes or offices. It is also compatible with mesh networking, allowing expansion with additional Cudy devices for wider coverage.

The CUDY LT18 – Dual Band router supports dual SIM slots, giving backup connectivity options in case one network fails. CUDY LT18 – Dual Band It also includes features like VPN support, parental controls, QoS traffic management, VLAN, and advanced firewall security, making it suitable for both home users and small business environments.

CUDY LT18 – Dual Band Setup is simple through the Cudy mobile app or web interface, allowing quick configuration, SIM setup, and network management without technical difficulty.

---

Key Features

• Model: CUDY LT18
• WiFi Standard: WiFi 6 (802.11ax)
• WiFi Speed: AX1800 (1201Mbps + 574Mbps)
• Network Type: 4G LTE Cat 18 (SIM supported)
• Mobile Speed: Up to 1.2Gbps theoretical LTE speed
• Technology: 4×4 MIMO, Carrier Aggregation
• Ports: 4 × Gigabit LAN
• SIM: Dual Nano SIM slots
• Features: VPN, QoS, Firewall, Parental Control
• Use Case: Home, office, CCTV, backup internet

---

Why Choose CUDY LT18 – Dual Band

• Fast Cat 18 LTE mobile internet performance
• Modern WiFi 6 for smoother connections
• Strong coverage with high-gain antennas
• Dual SIM backup for uninterrupted internet
• Gigabit LAN ports for stable wired connections
• Ideal for both home and business use
