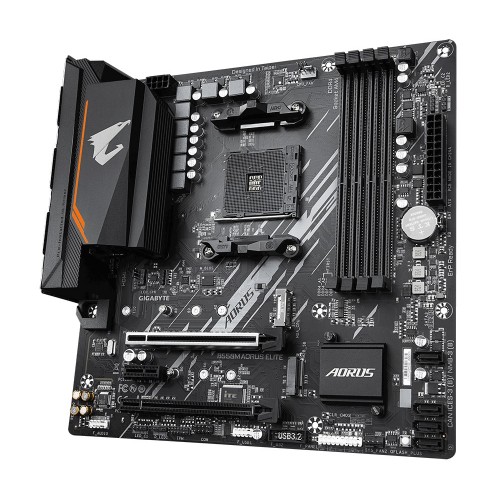

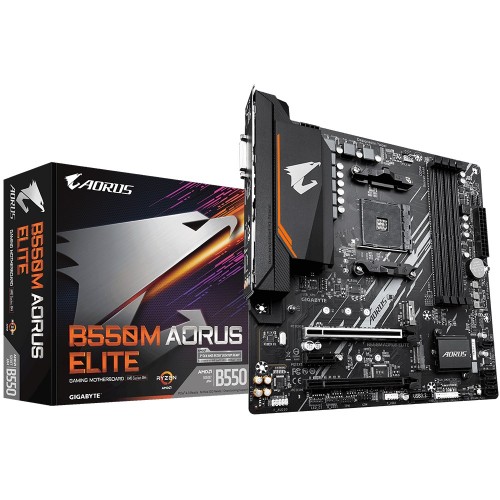

Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard
Original price was: ৳ 18,500.৳ 16,000Current price is: ৳ 16,000.
Key Features
- Model: B550M Aorus Elite
- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Blazing Fast 2.5GbE LAN
- Q-Flash Plus Update BIOS
- Ultra Durable PCIe 4.0 x16 Slot
Specification
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode – New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: – Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: – Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: – Supporting PCIe 3.0 x1 mode |
|
| M.2 Socket | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
|
| Memory | ||
| Type | Dual-Channel Architecture | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules |
|
| Maximum Memory | support up to 128GB | |
| Graphics | ||
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
|
| Max Shared Memory | 16 GB | |

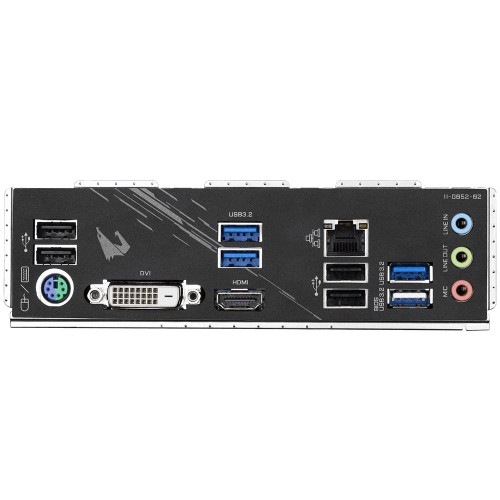

| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| USB (s) | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
|
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Support for Windows 10 64-bit | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
