| Specification | Details |
|---|---|
| CPU Socket | AMD AM4 |
| Supported CPU | Ryzen 5000 G-Series, Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 G-Series, Ryzen 3000 Series |
| Chipset | AMD B550 |
| BIOS | 1 x 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, ACPI 5.0 |
| Memory | 4 x DDR4 DIMM slots, up to 128GB (32GB per DIMM), Dual Channel, ECC/Non-ECC support, XMP support |
| Memory Speed | DDR4 3200/2933/2667/2400/2133 MT/s |
| Storage | 2 x M.2 (PCIe 4.0/3.0 support varies by CPU), 4 x SATA 6Gb/s |
| RAID Support | RAID 0/1/10 for NVMe SSDs and SATA devices |
| Graphics Output | 1 x DisplayPort (5120×2880@60Hz), 1 x HDMI (4096×2160@60Hz), Integrated Radeon Graphics support |
| LAN | Realtek GbE LAN (1 Gbps) |
| Wi-Fi | Realtek Wi-Fi 6 RTL8851BE (802.11ax/ac/n/g/b/a, Dual Band 2.4/5GHz) |
| Bluetooth | Supports 11ax 80MHz wireless standard (Bluetooth support included) |
| Audio | Realtek ALC1220 CODEC, 2/4/5.1/7.1-channel HD Audio |
| Expansion Slots | 1 x PCIe x16 (Gen4/Gen3 depends on CPU), 1 x PCIe x16 (x4), 1 x PCIe x1 |
| Internal Ports | 24-pin ATX, 8-pin CPU, CPU fan, 2 system fans, RGB/ARGB headers, 2 x M.2, 4 x SATA, USB Type-C header, USB 3.2 Gen1 header, USB 2.0 header, TPM header, Clear CMOS, Q-Flash Plus |

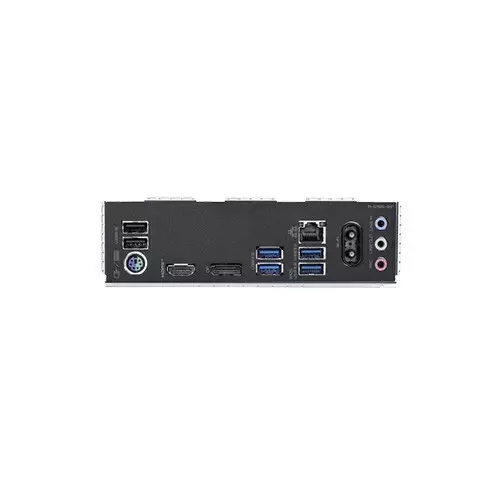

| Rear I/O Ports | 2 x USB 2.0, PS/2, HDMI, DisplayPort, 4 x USB 3.2 Gen1, RJ-45, Antenna connectors, 3 x Audio jacks |
| USB Support | 4 x USB 3.2 Gen1 rear, internal USB Type-C + additional USB headers, USB 2.0 ports |
| Bundled Software | Norton Internet Security (OEM), LAN bandwidth management |
| Supported OS | Windows 11 64-bit, Windows 10 64-bit |
| Special Features | APP Center, EasyTune, RGB Fusion, Smart Backup, System Info Viewer, Q-Flash, Q-Flash Plus |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Warranty | 3 Years |

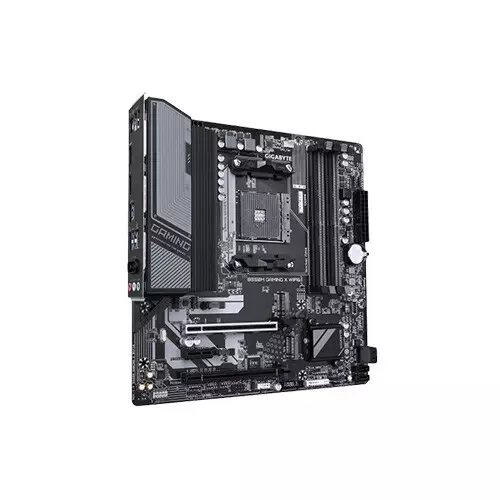

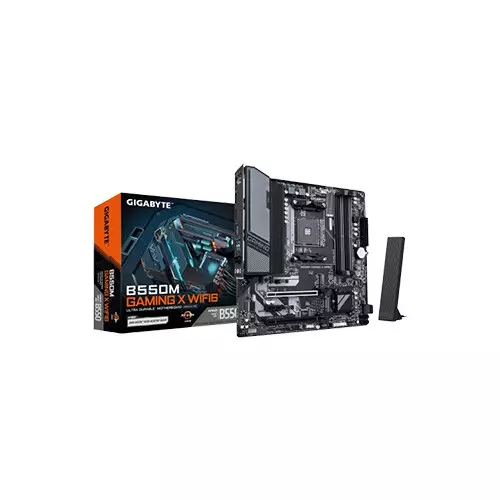

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
৳ 17,500 Original price was: ৳ 17,500.৳ 16,300Current price is: ৳ 16,300.
Key Features
- Supported CPU – AMD Ryzen 5000 G-Series
- Chipset – AMD B550
- Form Factor – Micro ATX
- LAN – Realtek GbE LAN chip
Category: Gigabyte (AMD)
